Isuzu MU-X 2021-2024 Workshop Service Repair Manual HTML Download, Second Generation

Isuzu MU-X 2021-2024 Workshop Service Repair Manual, Diagnosis and Wiring

This is Isuzu’s own electronic service information for the second generation MU-X, the browser based manual Isuzu dealers use, now available as an instant download. Whether you are chasing a fault code on the 3.0 diesel, servicing the 4WD transfer case or tracing a body electrical fault, the procedures, diagnosis and wiring diagrams are here across more than 7,500 linked pages.

Models:
Isuzu MU-X, model codes UCR and UCS, 2WD and 4WD, left and right hand drive

Engines:
Diesel
3.0 4JJ3, with and without DPD
1.9 RZ4E-TC

Transmissions:
AWR6B45 6 speed automatic
MVL 6 speed manual

Years: 2024, 2023, 2022, 2021

Format: HTML

Languages: English

Compatibility:
One zip of about 513 MB. Unzip it and open the START HERE page in Chrome, Edge, Firefox or Safari on Windows, Mac or Linux. It works offline and is easiest to use on a laptop or desktop.

SECTIONS SUPPLIED:
Introduction – Mechanical – Troubleshooting (DTC) – ETM Wiring Diagrams – Description

What is included in this workshop manual:
The mechanical section covers both diesel engines from the cylinder head and crankshaft to the common rail, then the suspension, driveline, axles and final drives, brakes, the automatic and manual transmissions, steering, HVAC, restraints, body and frame. The troubleshooting section gives the trouble codes and diagnosis for the engine, 4WD and differential lock, ABS and ESC, transmission, airbags, body control, keyless entry, parking aid, radar sensors and stereo camera. The ETM section adds the wiring diagrams, and the description section explains how each system works. And much more.

Special Features:
Official Isuzu service information, not an aftermarket summary
More than 500 trouble codes with step by step diagnosis
1,099 wiring diagrams in a built in viewer
Disassembly and reassembly for engines, gearboxes and axles
Primary specifications and tightening torques

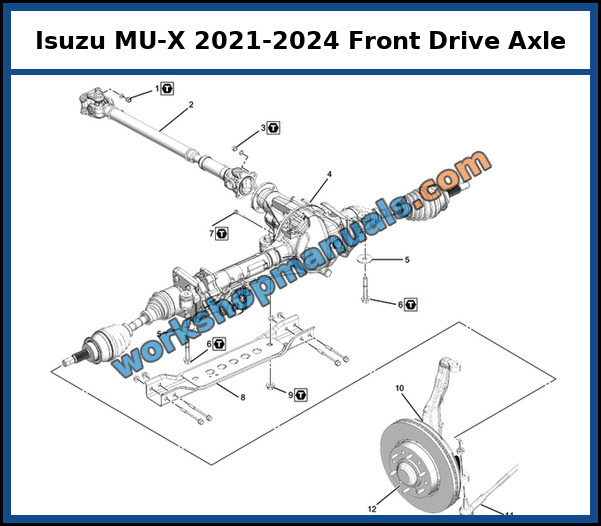

Isuzu MU-X 2021-2024 Front Drive Axle HTML Download

Isuzu MU-X 2021-2024 6 Speed Manual Transmission HTML Download

Instant Download

Frequently Asked Questions

Will it help me with a DPD regeneration problem on the 3.0?
Yes. The 4JJ3 is covered in separate versions with and without the DPD (diesel particulate defuser), and the engine control sections give the trouble codes and diagnosis for each.

Do I need special software to open it?
No. It is a browser based HTML manual. Unzip it, open the START HERE page and it runs in Chrome, Edge, Firefox or Safari without an internet connection.

Does it have the wiring diagrams?
Yes. The ETM section holds 1,099 wiring diagrams, which open in a viewer built into the manual.

Will it suit my 2023 MU-X?
Yes, if it is the second generation. The manual is Isuzu’s 2021 model year edition, and its model year table lists the same model codes for 2021 to 2024, so it fits those years apart from any running changes made after March 2021.

How do I receive the manual after I pay?
A download link is sent as soon as your payment clears. The manual comes as one zip of about 513 MB.

Need the first generation? The Isuzu MU-X 2017-2020 workshop manual covers it, the Isuzu D-Max 2019-2023 manual covers the pickup, and every title is listed in the Isuzu workshop manual range.
