VW Volkswagen Jetta Mk5 Workshop Repair and Service Manual PDF 2005-2010

VW Volkswagen Jetta Mk5 Workshop Repair, Service & Wiring Manual Download

This VW Volkswagen Jetta Mk5 workshop repair manual PDF covers the fifth generation Jetta saloon from 2005 to 2010. Its 12,111 pages cover servicing, petrol and TDI engines, manual, DSG and automatic gearboxes, running gear, brakes, electrics and body repairs, with 241 factory wiring diagrams.

Model:
VW Jetta fifth generation (Jetta 2005, sales type 1K2), model years 2005 to 2010, front wheel drive

Engines:
Petrol, Gasoline
1.4 TSI: CAXA
1.4 TSI twincharger: BLG, BMY, CAVA, CAVD, CTHA and CTHD
1.6: BSE, BSF, CCSA and CMXA
1.6 FSI: BLF
2.0: BHY
2.0 FSI: BLR, BLY, BVY and BVZ
2.0 turbo: AXX, BPY and BWA
2.0 TSI: CAWB, CBFA, CCTA and CCZA
2.5: BGP, BGQ, BTK, CBTA, CBUA and CCCA

Diesel:
1.9 TDI: BKC, BLS and BXE
2.0 TDI: BMM, AZV, BKD and BMN
2.0 TDI common rail: CBDA, CBDB, CBEA, CEGA and CJAA
2.0 TDI common rail generation II: CFFB, CFHB, CFHC, CLCA and CLCB
1.6 TDI common rail: CAYC

Transmissions:
0A4 and 0AF five speed manual
02Q, 02S, 0AG and 0AJ six speed manual
02E six speed DSG
0AM seven speed DSG
09G six speed automatic

Years: 2010, 2009, 2008, 2007, 2006, 2005

Format: PDF

Languages: English

Left and right hand drive covered.

Compatibility:
Windows 11, 10, 8, 7, Vista, XP, Mac, Linux, Android, IOS + All Tablets & Phones. One 201 MB PDF; download it on Wi-Fi once and it runs offline from then on.

CONTENTS:
Maintenance: engine list and service tables.- Engines: 1.4 TSI, twincharger, 1.6, 1.6 FSI, 2.0, 2.0 FSI, 2.0 turbo, 2.0 TSI, 2.5 five cylinder and TDI engine books with toothed belts, timing chains, cylinder heads, lubrication and cooling.- Fuel and emissions: petrol and diesel fuel supply, turbochargers, supercharger and ignition.- Gearboxes: five and six speed manual gearboxes with clutch, 02E and 0AM DSG with mechatronic, 09G automatic.- Running gear: axles and steering.- Brakes: brake systems.- Heating and A/C: Climatronic and Thermo Top V auxiliary heater.- Electrics: gas discharge headlights, parking aid, park assist steering, reversing camera, tyre pressure monitor, radio and navigation, trailer detector.- Body: airbags, body repairs and body dimensions.- Wiring: current flow diagrams from May 2005.- And Much More…

Special Features:
12,111 pages compiled from Volkswagen factory repair information
81 contents pages with 5,569 clickable links, plus 10,654 bookmarks
241 current flow diagrams on 2,436 sheets
Torque settings, technical data and fault finding for every system
Searchable text so you can jump straight to a part or a fault

Coverage: the maintenance book and several engine and gearbox books are shared with the Golf Variant and the later Jetta, so the engine list also shows engines from those models.

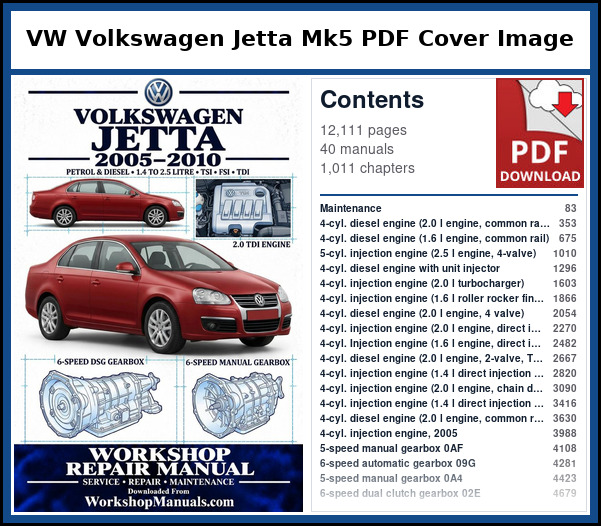

VW Volkswagen Jetta Mk5 PDF Cover Image with Table of Contents
