VW Volkswagen Golf Mk6 Workshop Repair and Service Manual PDF 2009-2013

VW Volkswagen Golf Mk6 Workshop Repair, Service & Wiring Manual Download

This VW Volkswagen Golf Mk6 workshop repair manual PDF covers the sixth generation Golf from 2009 to 2013, including the GTI and Golf R engines. Its 12,204 pages cover servicing, TSI and TDI engines, manual, DSG and automatic gearboxes, 4MOTION, running gear, brakes, electrics and body repairs, with 161 factory wiring diagrams.

Model:
VW Golf sixth generation (Golf 2009), model years 2009 to 2013, front wheel drive and 4MOTION

Engines:
Petrol, Gasoline
1.2 TSI: CBZA and CBZB
1.4: CGGA
1.4 TSI: CAXA, CAVD, CNWA, CTHD and CTKA
1.6: BSE, BSF, CCSA, CMXA and CHGA (BiFuel)
1.8 TSI: CDAA
2.0 TSI: CBFA, CCTA and CCZB
2.0 TSI: CDLC, CDLF, CDLG and CRZA
2.5: CBTA and CBUA

Diesel:
1.6 TDI: CAYB and CAYC
2.0 TDI: CBAA, CBAB, CBBB, CBDC, CFFA, CFFB, CFGB, CJAA and CLCA

Transmissions:
0A4, 0AF and 0AH five speed manual
02Q, 02S and 0AJ six speed manual
02E six speed DSG
0AM seven speed DSG
09G six speed automatic
4MOTION with Haldex coupling, propshaft and rear final drive

Years: 2013, 2012, 2011, 2010, 2009

Format: PDF

Languages: English

Left and right hand drive covered.

Compatibility:
Windows 11, 10, 8, 7, Vista, XP, Mac, Linux, Android, IOS + All Tablets & Phones. One 218 MB PDF; download it on Wi-Fi once and it runs offline from then on.

CONTENTS:
Maintenance: engine list and service tables.- Engines: 1.2 TSI, 1.4, 1.4 TSI, twincharger, 1.6, 1.8 and 2.0 TSI, Golf R and TDI engine books with timing chains, toothed belts, cylinder heads, lubrication and cooling.- Fuel and emissions: petrol and diesel fuel supply, turbochargers, supercharger and ignition.- Gearboxes: five and six speed manual gearboxes with clutch, 02E and 0AM DSG with mechatronic, 09G automatic.- Drivetrain: Haldex coupling, propshaft and rear final drive.- Running gear: front and rear suspension for front wheel drive and four wheel drive, DCC and electromechanical steering.- Brakes: brake systems.- Heating and A/C: Climatronic, auxiliary heater and electric engine preheater.- Electrics: Start/Stop, gas discharge headlights, KESSY, parking aid, Park Assist, reversing camera, main beam assist, radio and navigation.- Body: sunroof, airbags, body repairs and body dimensions.- Wiring: current flow diagrams from May 2008.- And Much More…

Special Features:
12,204 pages compiled from Volkswagen factory repair information
78 contents pages with 5,359 clickable links, plus 9,720 bookmarks
161 current flow diagrams on 1,689 sheets
Torque settings, technical data and fault finding for every system
Searchable text so you can jump straight to a part or a fault

Coverage: the 2.5 litre CBTA and CBUA and the 1.6 BiFuel CHGA are in the engine list and wiring diagrams without engine mechanics books. The maintenance book is shared with the Golf Plus 2009, and some engine and gearbox books with other Volkswagen models.

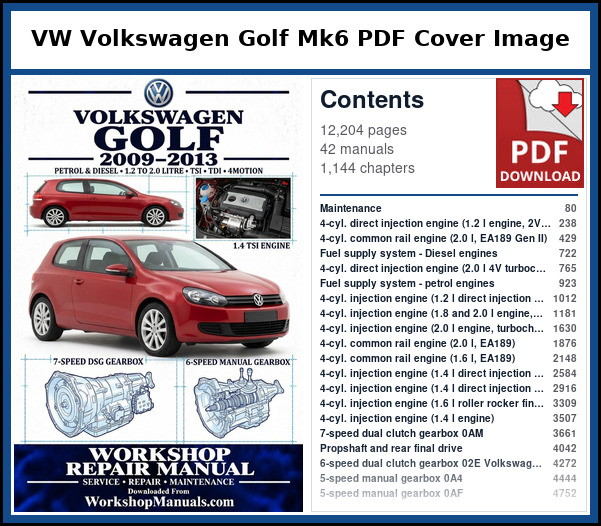

VW Volkswagen Golf Mk6 PDF Cover Image with Table of Contents

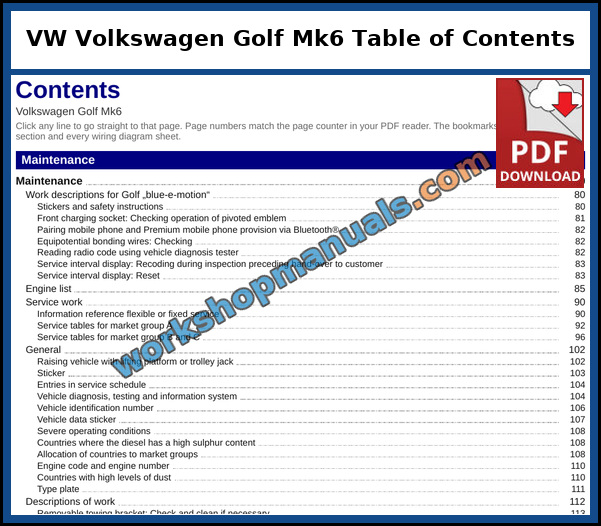

VW Volkswagen Golf Mk6 Table of Contents (Sample Page)

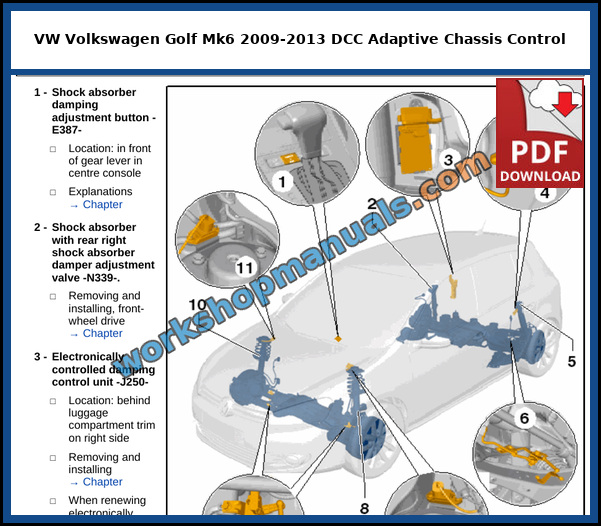

VW Volkswagen Golf Mk6 2009-2013 DCC Adaptive Chassis Control Components PDF Download

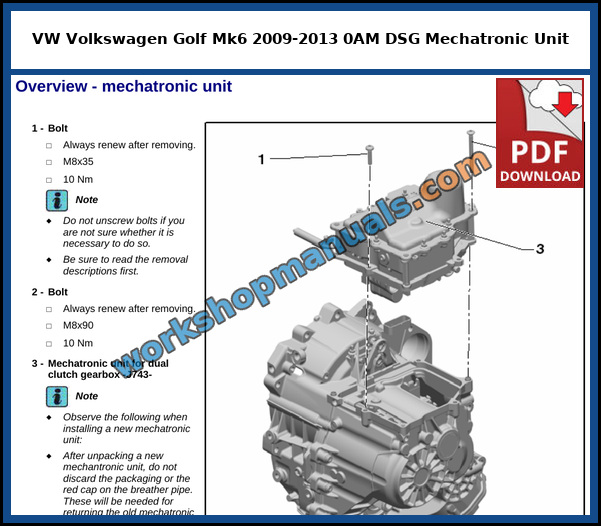

VW Volkswagen Golf Mk6 2009-2013 7 Speed DSG Mechatronic Unit PDF Download

Instant Download

Frequently Asked Questions

What engines does the Golf Mk6 service manual cover?
Petrol CBZA, CBZB, CGGA, CAXA, CAVD, CNWA, CTHD, CTKA, BSE, BSF, CCSA, CMXA, CHGA, CDAA, CBFA, CCTA, CCZB, CDLC, CDLF, CDLG, CRZA, CBTA and CBUA, and diesel CAYB, CAYC, CBAA, CBAB, CBBB, CBDC, CFFA, CFFB, CFGB, CJAA and CLCA. All have engine books except the 2.5 litre and the 1.6 BiFuel.

Can I change the timing chain on the 1.8 and 2.0 TSI with it?
Yes, the 1.8 and 2.0 litre chain drive engine book has the camshaft timing chain exploded view and the removal and installation procedure, and the TDI and 2.0 TSI toothed belt engine books cover the toothed belt drive.

Is the adaptive chassis control (DCC) covered?
Yes, the running gear book shows the DCC components and fitting locations with the vehicle level senders and damper adjustment valves, and the current flow diagrams include Dynamic Chassis Control.

Does it cover Park Assist?
Yes, the electrical system book covers the parking aid and park assist steering, and the current flow diagrams include the parking aid with and without Park Assist.

Is the Golf Mk6 manual also sold as workshop software?
Yes. If you are looking for the Professional Workshop Manual Software for this manual, see the VW Golf 2009-2016 professional workshop manual software. The previous Golf is in the VW Golf Mk5 2004-2009 service manual PDF, and other Volkswagen titles are in the VW Volkswagen workshop manual range.
