This VW Volkswagen Amarok 2H workshop repair manual PDF covers the first generation Amarok pick-up from 2010 to 2016. Its 5,887 pages cover servicing, the 2.0 TDI and TSI engines, manual and automatic gearboxes, transfer boxes and final drives, running gear, brakes, electrics and body repairs, with 205 factory wiring diagrams.

Model:
VW Amarok first generation (Amarok 2011, sales types 2H and S1), 2010 to 2016, rear wheel drive and all-wheel drive

Engines:
Petrol, Gasoline
2.0 TSI: CFPA

Diesel:
2.0 TDI common rail: CDBA, CDCA, CNEA, CNFA, CNFB and CSHA
3.0: DDXA, DDXB and DDXC

Transmissions:
0C6 six speed manual
0CM eight speed automatic
0C7 selectable all-wheel drive transfer box
0BU self-locking transfer box
Front and rear final drive with rear axle differential lock

Years: 2016, 2015, 2014, 2013, 2012, 2011, 2010

Format: PDF

Languages: English

Left and right hand drive covered.

Compatibility:
Windows 11, 10, 8, 7, Vista, XP, Mac, Linux, Android, IOS + All Tablets & Phones. One 82 MB PDF; download it on Wi-Fi once and it runs offline from then on.

CONTENTS:
Maintenance: engine list and service tables.- Engines: 2.0 TDI common rail and 2.0 TSI engine books with toothed belt drive, timing chain, turbochargers, cylinder heads, lubrication and cooling.- Fuel: petrol and diesel fuel supply and ignition.- Gearboxes: 0C6 six speed manual with clutch, 0CM eight speed automatic with mechatronic.- Drivetrain: transfer boxes 0C7 and 0BU, front and rear final drive, differential lock and propshafts.- Running gear: axles, steering, wheels and tyres, load ratings and trailers.- Brakes: brake systems with ABS.- Heating and A/C: Climatronic and auxiliary heater.- Electrics: Start/Stop, parking aid, reversing camera, cruise control, radio and navigation.- Body: hardtop, paint, body repairs and body dimensions.- Wiring: current flow diagrams from December 2009.- And Much More…

Special Features:
5,887 pages compiled from Volkswagen factory repair information
36 contents pages with 2,429 clickable links, plus 5,192 bookmarks
205 current flow diagrams on 1,903 sheets
Torque settings, technical data and fault finding for every system
Searchable text so you can jump straight to a part or a fault

Coverage: the 3.0 litre DDXA, DDXB and DDXC are in the engine list without an engine mechanics book. The general guides for trailers, wheels and tyres, load ratings and paint are shared with other Volkswagen commercial vehicles.

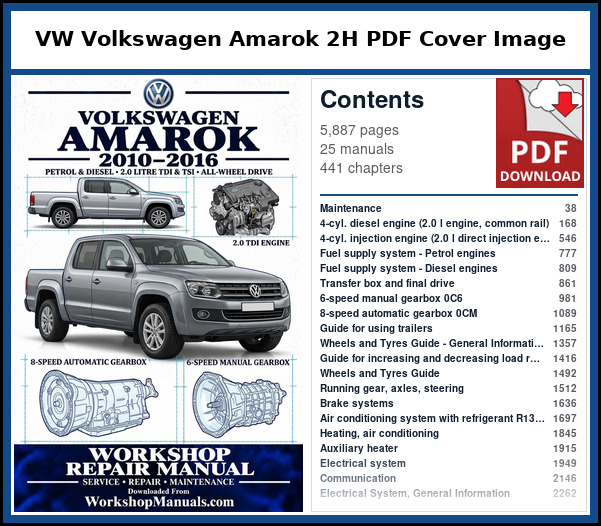

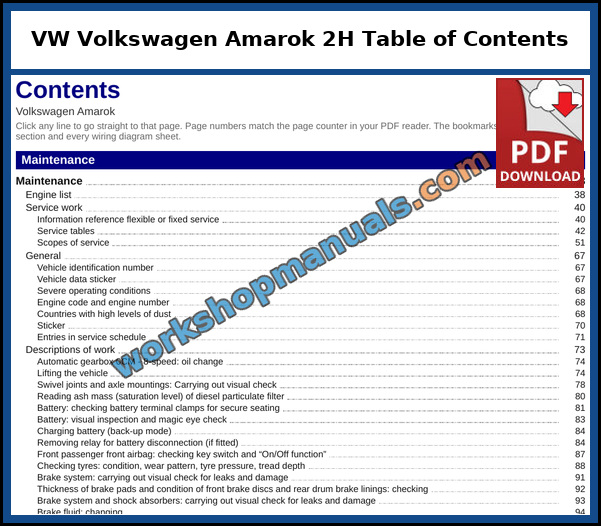

VW Volkswagen Amarok 2H PDF Cover Image with Table of Contents

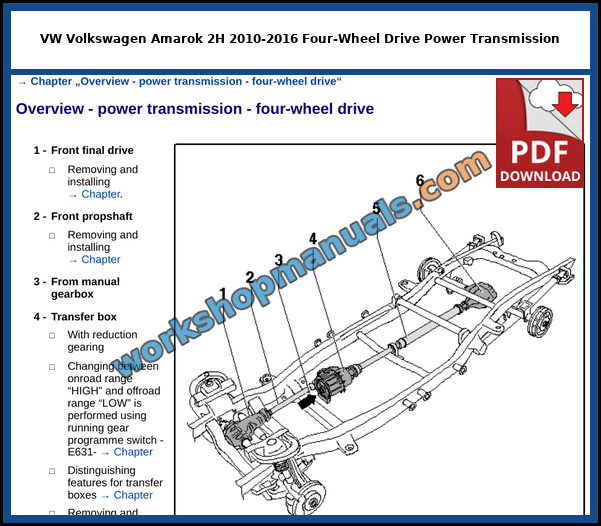

VW Volkswagen Amarok 2H 2010-2016 Four-Wheel Drive Power Transmission PDF Download

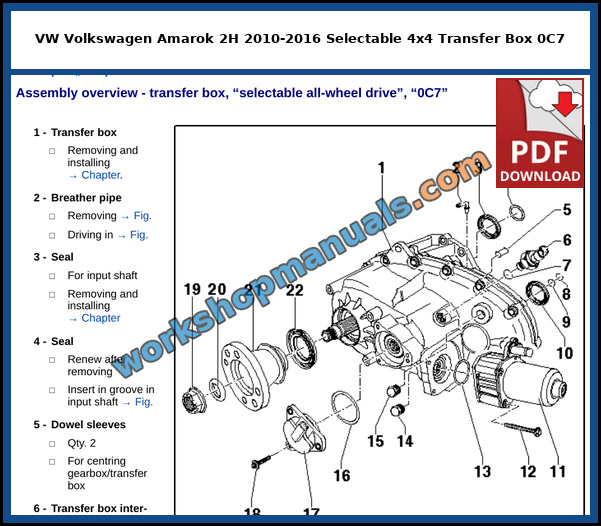

VW Volkswagen Amarok 2H 2010-2016 Selectable 4×4 Transfer Box 0C7 PDF Download
