Mazda RX-7 Workshop Repair Manual 1985-1992 PDF Download is the essential resource for maintaining, servicing and repairing the second-generation FC RX-7. These are Mazda’s own factory service manuals, supplied as both series books, Series 4 for 1986-1988 and Series 5 for 1989-1991, running to 49 PDF volumes and 2,646 pages in Mazda’s numbered section order, with exploded views, printed clearances and tolerances, special tool references and full wiring diagrams, and contains all information required for professional level maintenance of the Mazda RX-7.

Model: Mazda RX-7 second generation, FC chassis, Series 4 (1986-1988) and Series 5 (1989-1991), coupe and convertible

Engines:
Petrol, Gasoline
13B two rotor rotary, non turbo
13B two rotor rotary, turbocharged

Transmissions:
Manual: five-speed, separate turbo and non-turbo volumes in Series 5
Automatic: four-speed, 180 page overhaul volume in Series 5
Clutch, propeller shaft and front and rear axle volumes included

Drive line: Rear Wheel Drive, propeller shaft, front and rear axles, with Auto Adjusting Suspension and ABS material where fitted

Years: 1991, 1990, 1989, 1988, 1987, 1986

Format: PDF

Language: English

Compatibility: Windows 11, 10, 8, 7, Vista, XP, Mac, Linux, Android, iOS + All Tablets & Phones

Verified contents: two factory service manuals, 49 PDF volumes and 2,646 pages in total, every volume carrying a searchable text layer. The Series 4 book (1986-1988) runs to 23 volumes and 1,187 pages, including a 204 page body electrical volume, a 125 page turbo fuel and emission volume, a separate 87 page non-turbo fuel and emission volume, a 107 page wiring diagram volume and separate manual and power steering sections. The Series 5 book (1989-1991) runs to 26 volumes and 1,459 pages, including a 180 page automatic transmission volume, separate turbo and non-turbo manual transmission volumes, a 143 page wiring diagram volume, a 123 page body volume and two Service Highlights volumes. Apex seal, corner seal, side seal and eccentric shaft inspection figures are printed throughout, with separate turbo and non-turbo clearances given where they differ.

Special Features:
Searchable text layer added to every volume by OCR
Mazda numbered section structure, both series books
Exploded views with numbered callout lists
SST special service tool numbers marked on the illustrations
Printed clearances, tolerances and wear limits
Separate turbo and non-turbo fuel and emission volumes
Dedicated wiring diagram volume for each series
Convertible body and top material
Printable pages
Instant Download

Frequently Asked Questions

Which RX-7 does this cover?

The second generation, the FC chassis, across both factory books: Series 4 for the 1986 to 1988 cars and Series 5 for the 1989 to 1991 cars. Both are included in the one purchase.

Is this Mazda’s own factory manual?

Yes, these are Mazda’s own factory service manuals, laid out in Mazda’s numbered section order from predelivery inspection and engine through to body electrical, technical data and special tools, with SST special service tool numbers marked on the exploded views.

Is the rotary engine covered in depth?

Yes, the 13B two rotor engine has its own volume in each series. Rotor housing, front and rear rotors, apex seals, corner seals, side seals, oil seals and the eccentric shaft are all covered with exploded views and printed inspection figures, including apex seal standard height of 8.0mm and the separate apex seal to groove clearances for turbo and non turbo engines.

Are the turbo and non turbo cars both covered?

Yes, and they are kept separate where the factory kept them separate. Each series carries its own non turbo and turbo fuel and emission control volumes, and Series 5 adds separate turbo and non turbo manual transmission volumes. The wiring diagrams label turbo and non turbo circuits distinctly.

Does it include wiring diagrams?

Yes, each series has a dedicated wiring diagram volume, 107 pages for Series 4 and 143 pages for Series 5, alongside the body electrical volumes. The Series 5 wiring volume is line art drawn by Mazda, so it displays perfectly but searches less well than the text volumes.

Is the text searchable?

Yes. These began life as page scans with no text layer at all. Every volume has been put through optical character recognition so the set searches, while the original Mazda page images are left exactly as they were. The Series 5 wiring diagram volume is pure line art and returns little text by its nature.

Mazda RX-7 1985-1992 Workshop Manual PDF (Sample Page)

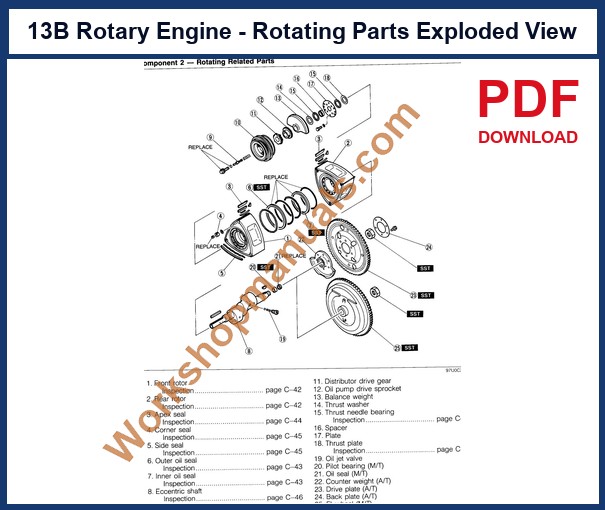

Mazda RX-7 FC workshop manual PDF sample page - 13B rotary engine rotating parts exploded view with rotors, apex seals and eccentric shaft

Mazda RX-7 1985-1992 Workshop Manual (Inside View)

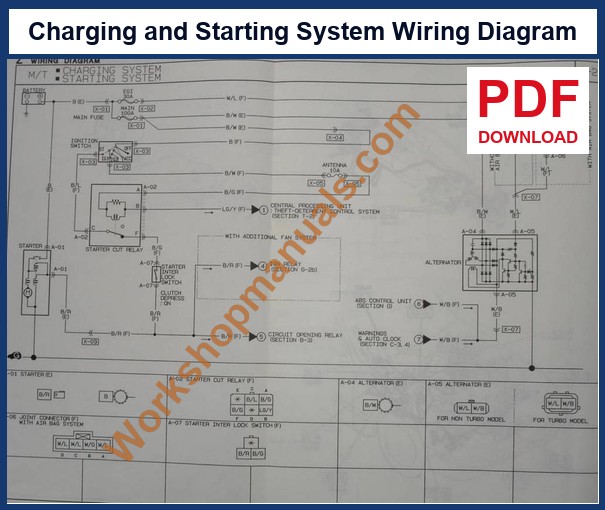

Mazda RX-7 FC workshop manual inside view - charging and starting system wiring diagram with turbo and non turbo variants
