Audi Q5 8R Workshop Repair and Service Manual PDF 2008-2017

Audi Q5 8R Workshop Repair, Service & Wiring Manual Download

This Audi Q5 8R workshop repair manual PDF covers the first generation Q5 from 2008 to 2017, including the SQ5 and the Q5 hybrid. Its 11,393 pages cover servicing, TFSI and TDI engines, manual, S tronic and automatic gearboxes, quattro drive, running gear, brakes, electrics and body repairs, with 150 factory wiring diagrams.

Model:
Audi Q5 first generation (vehicle model code 8R), 2008 to 2017, including the SQ5 and the Q5 hybrid, front-wheel drive and quattro

Engines:
Petrol, Gasoline
2.0 TFSI: CAEB, CDNB, CDNC, CNCB, CNCD, CNCE, CPMA and CPMB
2.0 TFSI hybrid: CHJA
3.0 TFSI: CTUC, CTUD, CTVA and CTXA
3.2 FSI: CALB

Diesel:
2.0 TDI common rail: CAGA, CAGB, CAHA, CAHB, CGLA, CGLB, CGLC, CGLD, CJCA, CJCB, CJCD, CMGA, CMGB, CNHA, CNHC, CSUA and CSUB
3.0 TDI common rail: CCWA, CCWB, CDUD, CGQB, CPNB, CTBA, CTBC, CVUB, CVUC and DEHA

Transmissions:
0B1 six speed manual, front-wheel drive
0B2 six speed manual, quattro
0B5 seven speed S tronic dual clutch
0BK eight speed automatic, quattro
0BW eight speed hybrid automatic
0B6 automatic gearbox, quattro
Rear final drives 0BC, 0BD, 0BE and 0BF with sport differential

Years: 2017, 2016, 2015, 2014, 2013, 2012, 2011, 2010, 2009, 2008

Format: PDF

Languages: English

Left and right hand drive covered.

Compatibility:
Windows 11, 10, 8, 7, Vista, XP, Mac, Linux, Android, IOS + All Tablets & Phones. One 252 MB PDF; download it on Wi-Fi once and it runs offline from then on.

CONTENTS:
Maintenance: service schedules and engine tables.- Engines: 2.0 TFSI, 3.0 TFSI, 3.2 FSI, 2.0 TDI and 3.0 TDI engine books with timing chains, toothed belts, turbochargers, supercharger, cylinder heads, lubrication and cooling.- Fuel: petrol and diesel fuel supply, direct injection and ignition, TDI injection and glow plug systems.- Gearboxes: 0B1 and 0B2 manual gearboxes with clutch, 0B5 S tronic with mechatronic, 0BK and 0BW automatic gearboxes.- Drivetrain: quattro rear final drives and sport differential.- Running gear: front-wheel drive and quattro running gear, dynamic steering, wheels and tyres.- Brakes: brake system and electromechanical parking brake.- Heating and A/C: air conditioning and auxiliary heater.- Electrics: hybrid high-voltage system, Start/Stop, adaptive cruise control, lane departure warning, parking aid, reversing camera and MMI.- Body: body repairs and body dimensions.- Wiring: current flow diagrams from September 2008.- And Much More…

Special Features:
11,393 pages compiled from Audi factory repair information
83 contents pages with 5,701 clickable links, plus 8,667 bookmarks
150 current flow diagrams on 1,254 sheets
Torque settings, technical data and fault finding for every system
Searchable text so you can jump straight to a part or a fault

Coverage: some engine and gearbox books are shared with the Audi A4 2008 and A5 and say so in their titles, and the general guides for trailers, wheels and tyres and R134a air conditioning are shared across Audi models.

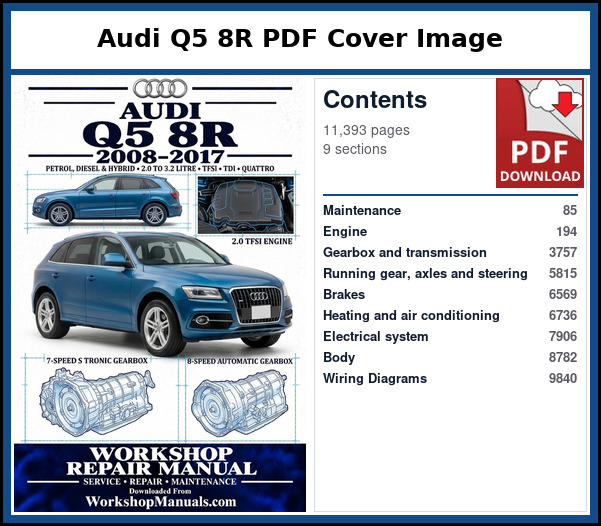

Audi Q5 8R PDF Cover Image with Table of Contents

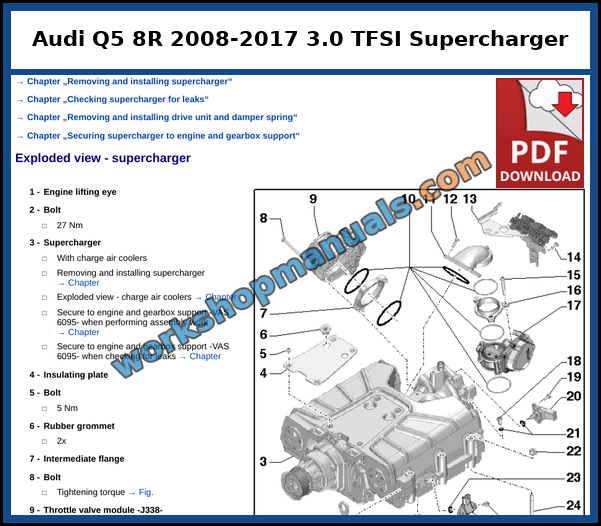

Audi Q5 8R 2008-2017 3.0 TFSI Supercharger PDF Download

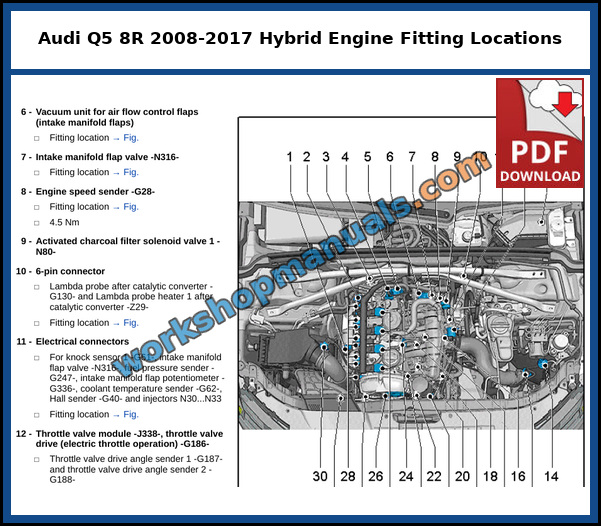

Audi Q5 8R 2008-2017 Hybrid Engine Component Locations PDF Download

Instant Download

Frequently Asked Questions

What engines does the Audi Q5 8R service manual cover?
Petrol 2.0 TFSI, 2.0 TFSI hybrid (CHJA), 3.0 TFSI supercharged and 3.2 FSI (CALB), and diesel 2.0 TDI and 3.0 TDI common rail, with 41 engine codes listed in the engine tables. All of them have engine books.

Can I change the timing chain on the 2.0 TFSI with it?
Yes, the 2.0 TFSI engine books have the exploded view of the camshaft timing chains with the chain tensioner, guide rails and timing valves, and the procedure for removing and installing the camshaft timing chain.

Is the SQ5 covered?
Yes, SQ5 notes and procedures appear throughout the manual, including the engine, running gear and wheel and tyre information, and the engine tables include the higher output 3.0 TFSI and 3.0 TDI engines.

Does it cover the electromechanical parking brake?
Yes, the brake system book covers the electromechanical parking brake and its control unit, and the current flow diagrams include the electromechanical parking brake.

Is the Q5 8R manual also sold as workshop software?
Yes. If you are looking for the Professional Workshop Manual Software for this manual, see the Audi Q5 2008-2017 professional workshop manual software. The second generation is in the Audi Q5 2017-2020 service manual PDF, and other Audi titles are in the Audi workshop manual range.
